Home /Products/Remote Control Buzzer/LCP 30*5.5mm Passive AC 5V External Driven Magnetic Transduce Piezo Buzzer AT3040

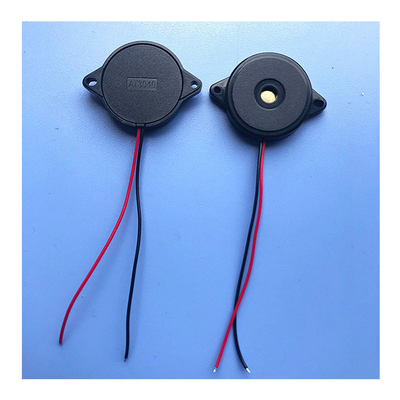

LCP 30*5.5mm Passive AC 5V External Driven Magnetic Transduce Piezo Buzzer AT3040

1 Piece
MOQ
$0.12(1 - 999 Pieces) $0.10(1000 - 4999 Pieces) $0.09(5000 - 49999 Pieces) $0.08(>=50000 Pieces)
Price
LCP 30*5.5mm Passive AC 5V External Driven Magnetic Transduce Piezo Buzzer AT3040
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YNR-30055W
Type: Buzzer, Buzzer
Material: LCP, LCP
Color: Black, Black
Input Type: AC, AC
Voltage - Rated: 5V
Voltage Range: 1-30V
Frequency: 4000Hz, 4000HZ
Technology: Piezo, Piezo
Operating Mode: Single Tone
Operating Temperature: -10°C ~ 60°C, -10°C ~ 60°C
Mounting Type: Through Hole
Termination: Surface Mount
Size / Dimension: 30*5.5mm
Height - Seated (Max): 5.5mm
Voltage - Input (Max): 30V P-p
Impedance: 25±40% N F
Frequency Range: 4000Hz
Height (Max): 5.5mm
Efficiency - Type: Sound Pressure Level (SPL)
Rated Voltage: 5V
Product Name: AC 5V Passive External Driven Magnetic Transduce Piezo Buzzer
Install: Through Hole
Rated Voltage:: 5V, 12V, 24V
Basic Infomation
Model Number: YNR-30055W
Payment & Shipping Terms
Packaging Details: Packaging in one Box
Supply Ability: 100000 Piece/Pieces per Week
Product Description
View More>>
30*5.5mm AC 5V Passive External Driven Magnetic Transduce Piezo Buzzer
Products Description
Product Name
5V Passive External Driven Magnetic Transduce Piezo Buzzer
Type
Piezo Buzzer
Rated Voltage(square wave)
Max.3mA Max.5mA Max.5mA
Sound Output at 10cm
Min. 80dB Min. 85dB Min. 85dB
Operating Voltage
1~30Vo-p
Operating Temperature
-10℃～+60℃
Storage Temperature
-20℃～+70℃
Rated Frequency
4000Hz
Capacitance at 120Hz
25±40% n F
Tone
Constant
1. Piezo Buzzer Dimensions
2. Piezo Buzzer Test Circuit
3. Piezo Buzzer Frequency Response
4. Piezo Buzzer Test Condition

Contact Us Now!
Hot Sale
Company Profile
Guangzhou Yueneng Technology Co., Ltd. is located in Yuexiu District, Guangzhou City, Guangdong Province, the business capital of a thousand years. We can provide SMD buzzers, piezoelectric buzzers, electromagnetic buzzers, speakers, receivers, microphone piezoelectric components and other products. Since 1994, we have been focusing on the research, development and production of acoustic components, and continue to provide high-quality products, competitive prices and reliable services. The company strictly implements ISO9001 and QS9000, and strengthens the control system. Our products are widely used in electrical appliances, such as MP3 players, MP4 players, security systems, medical equipment, etc. The company has more than 6,000 square meters of workshops, more than 260 skilled workers, and more than 30 experienced engineers. Most of the products are exported to the United States, Europe and Southeast Asia. We believe that Yueneng Technology will create a perfect future with you.
Certifications
FAQ
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.

Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.

Q3: What about terms of payment?
A3: Payment terms: T/T, West Union, Paypal and L/C etc.

Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .

Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.

Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.

Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.

Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free！Contact Us Now!
