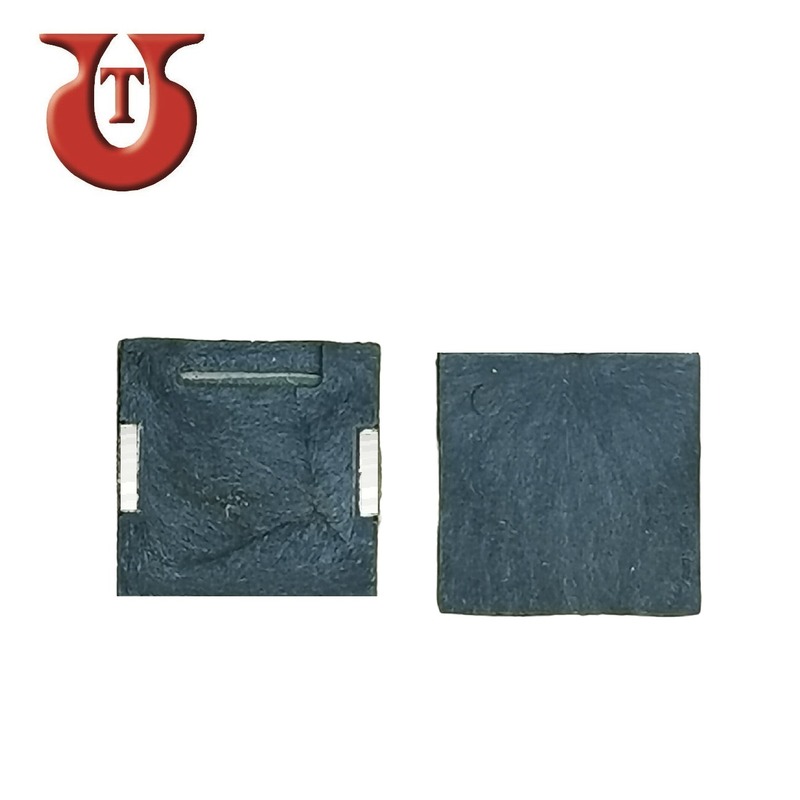

Name: 12mm SMD Plastic Piezo Buzzer
Brand: 12mm SMD Plastic Piezo Buzzer
SKU: UTPT1230S
Price: 1 USD
Availability: InStock
Rating: 4.5 (190 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: UTPT1230S

Type: Buzzer

Color: Black

Technology: Piezo

Mounting Type: Surface Mount

Size / Dimension: 12 X 12 X 3mm

Product Name: 12mm SMD Piezo Buzzer

Housing Material: Plastic

Certification: ROHS/ISO9001

Components: Sound Passive

Basic Infomation

Certification: ROHS/ISO9001

Model Number: UTPT1230S

Payment & Shipping Terms

Packaging Details: 12mm SMD Piezo Buzzer: Export Carton Box

Supply Ability: 2500000 Piece/Pieces per Month

Product Description

Rated Voltage (Vp-p)	3
Operating Voltage (Vp-p)	1-25
Rated Current (mA)	5 max
Capacitance at 100Hz 1V (pF)	16000+/-30%
Sound Output at 10cm (dB)	75 min
Resonant Frequency (Hz)	4000+/-500
Operating Temperature (°C)	-20~+70

Product Packaging

Buzzer Catalogue

PIEZO BUZZER

MAGNETIC BUZZER

MECHANICAL BUZZER MECHANICAL BUZZER
