12*9.5mm 5V 6V 12V magnetic hydz buzzer MSES12C25P05

10 Pieces
$0.50(10 - 999 Pieces) $0.15(1000 - 99999 Pieces) $0.13(>=100000 Pieces)

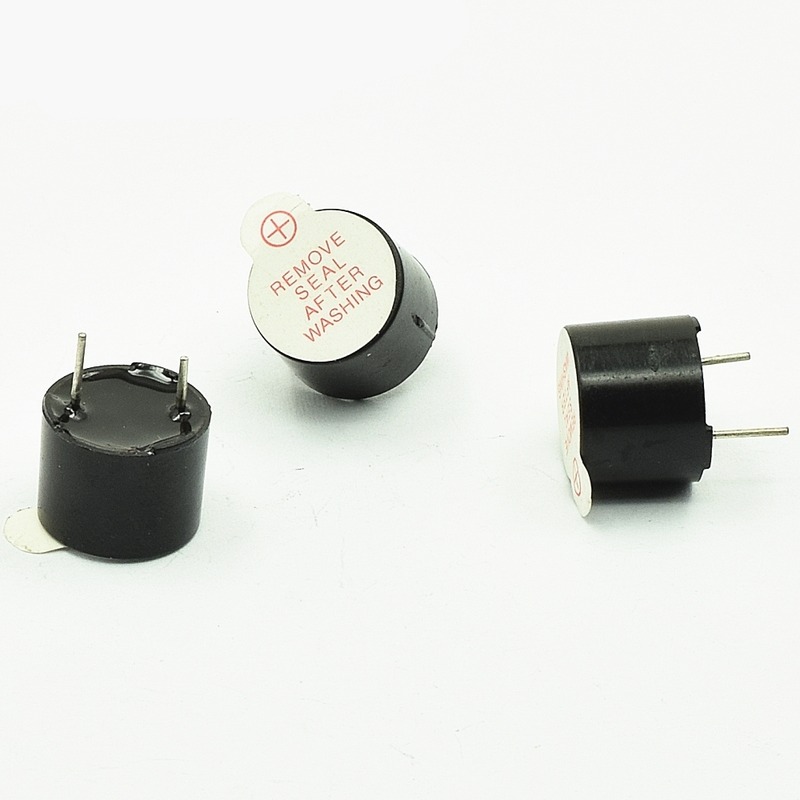

12*9.5mm 5V 6V 12V magnetic hydz buzzer MSES12C25P05
Features Gallery Product Description Request A Quote
Model Number: MSES12C25P05
Type: Buzzer
Rated Voltage: 5VDC
Operation Voltage: 4-8VDC
Sound Pressure Level=SPL: Min 85dB
Current: ≤30mA
Oscillation Frequency: 2500± 200Hz
Response Time: Max 50mS
Operating Temperature: -20~+75℃
Storage Temperature: -30~+80 ℃
Terminal Strength: 10N
Weight: 2g
Basic Infomation
Model Number: MSES12C25P05
Payment & Shipping Terms
Packaging Details: Export standard packing
Supply Ability: 1000000 Piece/Pieces per Month
Product Description
Product Description
Rated voltage
Operation voltage
Sound Pressure Level=SPL
Min 85dB
Standard State,Standard Drive Circuit.

Rated voltage,Distance at 0.1m
≤ 30mA
Rated voltage,Distance at 0.1m
Oscillation frequency
Response time
Max 50mS
Lowest operation voltage
Range of operation temperature
SPL ≥85dB
Range of preservation temperature
Terminal strength
Pull load on the direction of the terminal axis
Externals size
Refer to the attached drawing
Buzzer Advantage
1.Automated machine dispensing,perfect product appearance .
2.Sound test, using decibels,frequency waveforms, impedance recognition, excellent product sound and good consistency.
Buzzer Application
Buzzer is generally used in intelligent wearable equipment, anti-theft system, medical equipment, industrial production, etc.
Main Series
Our main products are: Buzzer(piezo buzzer/magnetic buzzer/mechanical buzzer/SMD buzzer);Ultrasonic Sensor(open ultrasonic sensor/waterproof ultrasonic sensor/hcar parking sensor/high frequency sensor);Alarm Siren(piezo siren/ electronic siren/ backup alarm);Speaker(mylar speaker/mini speaker/mobilephone speaker).
Why Choose Us
Manorshi has strong technical R & D team, scientific production platform and strict quality control system. On the road of innovation, we have not been stagnant. We have constantly developed and produced products with beautiful appearance and excellent performance, energy conservation and environmental protection green products, aiming to meet the market demand. Products are widely recognized and trusted by users, and can meet the changing economic and social needs.
1.We use matching packaging for different categories of products.At present, our packaging pictures are being gradually improved and displayed online.
2.We have long worked with courier companies to enjoy better shipping discounts.
