Home /Products/Active Piezo Buzzer/26*16mm DC 24V Active Min 85dB Mini Waterproof Piezo Buzzer With Micro Wire 26*16mm

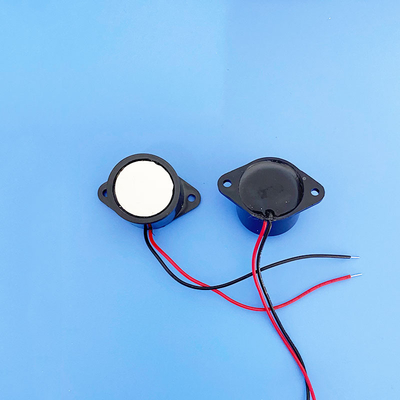

26*16mm DC 24V Active Min 85dB Mini Waterproof Piezo Buzzer With Micro Wire 26*16mm

1 Piece
MOQ
$0.80(1 - 999 Pieces) $0.75(1000 - 4999 Pieces) $0.72(5000 - 49999 Pieces) $0.65(>=50000 Pieces)
Price
26*16mm DC 24V Active Min 85dB Mini Waterproof Piezo Buzzer With Micro Wire 26*16mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YND-2616
Type: Buzzer, Buzzer
D/C: 20210506
Color: Black, Black
Input Type: DC, DC
Voltage Range: 3-24V
Frequency: 2800±500Hz, 2800±500Hz
Technology: Piezo
Operating Temperature: -30°C ~ 85°C, -30°C ~ 85°C
Mounting Type: Through Hole
Size / Dimension: 26*16mm
Height - Seated (Max): 16MM
Voltage - Input (Max): 24V
Height (Max): 16mm
Product Name: Active Min 85dB Micro Mini Waterproof Piezo Buzzer With Wire
Response Time: Max 50mS
Max Input Voltage: 24V
3500±500Hz: 10N
Sound Pressure Level: Min 85dB
Basic Infomation
Model Number: YND-2616
Payment & Shipping Terms
Packaging Details: Packaging in one Box
Supply Ability: 100000 Piece/Pieces per Week
Product Description
View More>>
26*16mm DC 24V Active Min 85dB Micro Mini Waterproof Piezo Buzzer With Wire
Products Description
Product Name
DC 12V 24V Active Min 85dB Micro Mini Waterproof Piezo Buzzer
Type
Piezo Buzzer
Max Input Voltage
24V
Storage Temperature
-40°C ~ 95°C
Operating Temperature
-30°C ~ 85°C
Sound Output at 10cm (dB)
Min 85dB
Max 50mS
Max 50mS
Resonance Frequency
2800±500Hz
Terminal strength
10N
Technolgy
Piezo
1. Piezo Buzzer Dimensions
2. Piezo Buzzer Test Circuit
3. Piezo Buzzer Frequency Response
