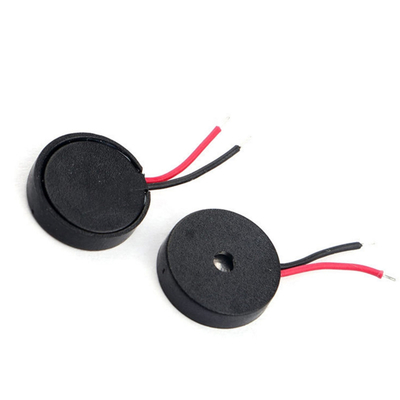

Factory hot selling plastic piezo buzzer mini piezo buzzer passive type piezo buzzer

100.0 Pieces
MOQ
Factory hot selling plastic piezo buzzer mini piezo buzzer passive type piezo buzzer
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: IST-PT10A
Type: Buzzer
D/C: IST-PT10A
Material: Plastic
Color: Black
Voltage - Rated: 10V
Frequency: 3200±500HZ
Technology: Piezo
Operating Mode: Single Tone
Operating Temperature: -20°C ~ 60°C
Size / Dimension: 10.0 * 3.2mm
Part Number: IST-PT10A
Dimension: 10.0 * 3.2mm
Rated Voltage: 10Vp-p
Resonant Frequency: 3200±500HZ
SPL: ≥80dB@10cm
Current: ≤5mA
Operating Voltage: 1~30Vp-p
Basic Infomation
Model Number: IST-PT10A
Payment & Shipping Terms
Packaging Details: Export standard packing
Supply Ability: 10000 Piece/Pieces per Day
Product Description
Product Description
Item
Unit
Value
Rated Voltage（Square Wave）
Vp-p
10
Operating Voltage
Vp-p
1-30
Rated Current（Max）
mA
5
Min Sound Output at 10cm
dB
80
Resonant Frequency
Hz
3200
Capacitance at 120Hz
pF
11000±30%
Operating Temperature
℃
-20~+60
Storage Temperature
℃
-30~+70
Weight
g
1
Housing Material
Black ABS
Lead Wire
UL1571 AWG32
Tone Nature
Single
Company Profile
Changzhou ISensor Technology Co., Ltd. is a professional manufacturer engaged in research and development, production and sales of various kinds of electro-acoustic components, its own brand (ISensor) products: ultrasonic sensors, buzzers, speakers, etc., specifications and models of more than 300 kinds. Founded in 2015, the company covers an area of more than 6,000 square meters, employs nearly 160 people, has a professional and experienced R & D personnel and technical engineering team, has advanced automation production equipments and testing instruments. In line with the management guiding ideology of "customer satisfaction", the company attaches great importance to quality control and quality management, and fully introduces the ROHS standard to produce products, and has obtained ISO9001:2015 and SGS,CE,REACH and other product certifications. ISensor has a wide range of products used in household appliances, watches, toys, instruments and meters, alarm system, reversing radar, GPS and ultrasonic ranging and other fields. We have been based on the domestic and foreign markets, product quality and price competitive, "Customer Oriented Service" is our faith we have been adhering to, and we believe that your an attempt will achieve our permanent cooperation!
Why Choose Us
Product Show
Packing&Shipping
FAQ
Q1: Could I get some samples for testing first?
A1: Yes, definitely you can. After confirming your specific requirements, we will quote and discuss with you about the samples.

Q2: Could you customize the products according to my special requirements?
A2: Yes. We are capable of customizing the products according to your specific performance requirements.

Q3: What's your lead time?
A3: Generally speaking, sample order 3-7 working days; bulk order 15-25 working days, a little bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.

Q4: How does your factory control the product quality?
A4: Quality is the top priority. We always attach great importance to quality control from the beginning to the end of production according to ISO9001. Every product will be fully assembled and carefully tested before packed.

Q5: When can I get a price？
A5: We usually quote within 24 hours after we get your inquiry.
