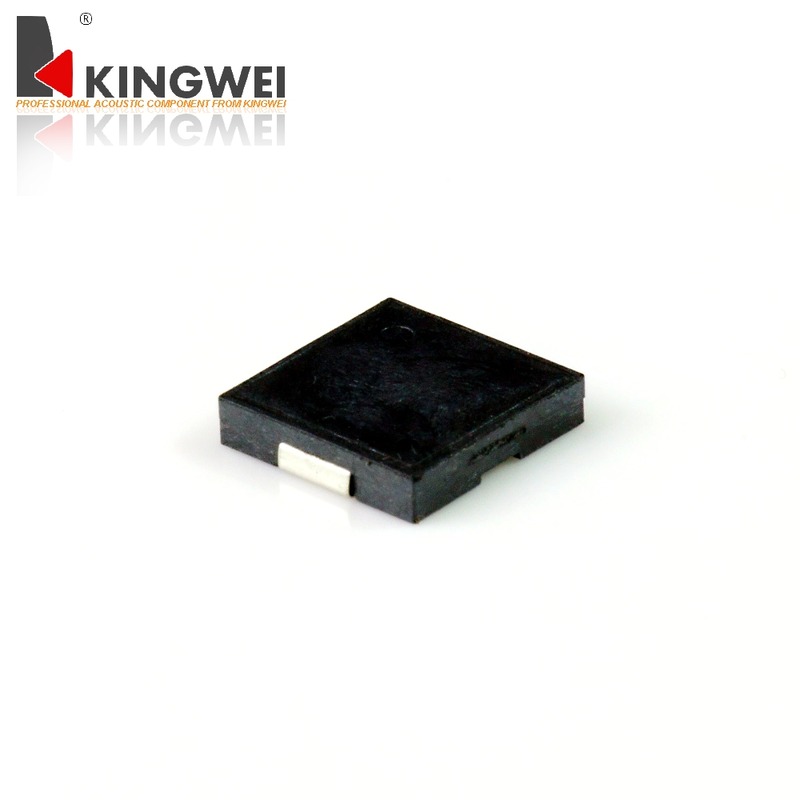

High quality Outer-drive SMD small buzzer KST0918F05

Out-Diameter: 9*9mm

 Height: 1.8mm

Rate Voltage: 5Vp-p Square Wave

Operating Voltage: 1.0~25Vp-p Square Wave

 Max. Rated Current: 5mA at 4.1KHZ/5Vp-p Square Wave

Resonant Frequency: 4.1±0.5KHZ

Min. Sound Pressure Level: 68dB at 4.1KHZ/5Vp-p Square Wave/10cm

Capacitance at 100Hz: 12000nF±30% at 1KHZ

Case Material/Color: PPA/BLACK

Leading Pin: Tin Plated Brass(Sn)
