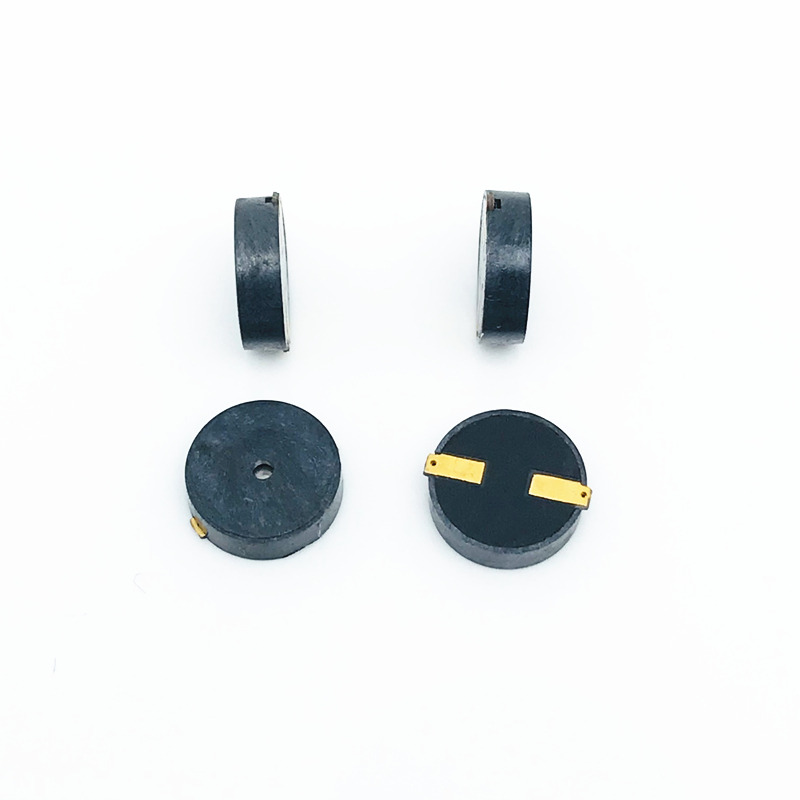

Passive LCP Plastic 10*3mm Ac System 3V 5V SMD Piezo Piezo Buzzer

1 Piece
MOQ
$0.35(1 - 999 Pieces) $0.32(1000 - 4999 Pieces) $0.31(5000 - 49999 Pieces) $0.30(>=50000 Pieces)
Price
Passive LCP Plastic 10*3mm Ac System 3V 5V SMD Piezo Piezo Buzzer
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YNT-10030
Type: Buzzer, Buzzer
D/C: 20210506
Material: LCP Plastic, LCP Plastic Resin
Color: Black, Black
Input Type: AC, AC
Voltage - Rated: 3V, 5V
Voltage Range: 2~20Vo-p
Frequency: 5200Hz, 5200Hz
Technology: Piezo, SMD Piezo
Operating Mode: Single Tone
Current - Supply: 80MA
Operating Temperature: -20℃~+70℃, -20℃~+70℃
Mounting Type: Surface Mount
Size / Dimension: 10*3.1mm
Height - Seated (Max): 3.1MM
Voltage - Input (Max): 3v
Height (Max): 3.1mm
Rated Voltage: 3V
Product Name: AC Passive Sounder System Speaker SMD Magnetic Piezo Buzzer
Install: Surface Mount
Rated Voltage:: 3V, 5V
Basic Infomation
Model Number: YNT-10030
Payment & Shipping Terms
Packaging Details: Packaging in one Box
Supply Ability: 100000 Piece/Pieces per Week
Product Description
View More>>
10*3.1mm AC Passive Sounder System 3V 5V SMD Magnetic Piezo Buzzer
Products Description
Product Name
Passive Sounder System Speaker SMD Magnetic Piezo Buzzer
Type
Buzzer
Rated Voltage
3V, 5V
Operating Voltage
2V-20V
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-40°C ~ 85°C
Rated Current
Max.3mA;Max.3mA;Max.5mA
Sound Output at 10cm(dB)
Min. 65dB;Min. 70dB;Min. 75dB
Capacitance at 120Hz
10nF±40%
Oscillation Frequency
5200Hz
Input Type
AC
Technolgy
SMD Piezo
1. SMD Buzzer Dimensions
2. SMD Buzzer Test Circuit
3. SMD Buzzer Frequency Response
4. SMD Buzzer Packing
