Home /Products/Passive Piezo Buzzer/Sounder LCP Plastic 14*4mm AC 5V 12V Passive Speaker Piezo Alarm System SMD Buzzer

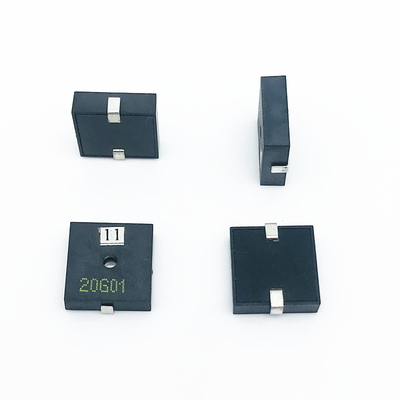

Sounder LCP Plastic 14*4mm AC 5V 12V Passive Speaker Piezo Alarm System SMD Buzzer

1 Piece
MOQ
$0.40(1 - 999 Pieces) $0.37(1000 - 4999 Pieces) $0.36(5000 - 49999 Pieces) $0.35(>=50000 Pieces)
Price
Sounder LCP Plastic 14*4mm AC 5V 12V Passive Speaker Piezo Alarm System SMD Buzzer
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YNT-14040
Type: Buzzer, Buzzer
D/C: 20210506
Material: LCP Plastic, LCP Plastic Resin
Color: Black, Black
Input Type: AC, AC
Voltage - Rated: 5V
Voltage Range: 2~25Vo-p
Frequency: 4000Hz, 4000Hz
Technology: Piezo, SMD Piezo
Operating Mode: Single Tone
Current - Supply: 80MA
Operating Temperature: -20℃~+70℃, -20℃~+70℃
Mounting Type: Surface Mount
Size / Dimension: 14*4.3mm
Height - Seated (Max): 4.3MM
Voltage - Input (Max): 25V
Height (Max): 4.3mm
Rated Voltage: 5V
Product Name: 5V Passive Speaker Sounder Alarm System Magnetic SMD Piezo Buzzer
Install: Surface Mount
Rated Voltage:: 3V, 5V, 12V
Basic Infomation
Model Number: YNT-14040
Payment & Shipping Terms
Packaging Details: Packaging in one Box
Supply Ability: 100000 Piece/Pieces per Week
Product Description
View More>>
14*4.3mm AC 5V 12V Passive Speaker Sounder Alarm System SMD Piezo Buzzer
Products Description
Product Name
Speaker Sounder Alarm System Magnetic SMD Piezo Buzzer
Type
Buzzer
Rated Voltage
3V, 5V, 12V
Operating Voltage
2V-25V
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
Rated Current
Max.3mA;Max.3mA;Max.5mA
Sound Output at 10cm(dB)
Min. 70dB;Min. 75dB;Min. 80dB
Capacitance at 120Hz
11±40% n F
Oscillation Frequency
4000Hz
Input Type
AC
Technolgy
SMD Piezo
1. SMD Buzzer Dimensions
2. SMD Buzzer Test Circuit
3. SMD Buzzer Frequency Response
4. SMD Buzzer Packing
